RK100-02 Wind Speed ABS_Mertani_Mertani Instruments
The RK100-02 Wind Speed Sensor (MTI.AWS.RK.100-02) uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups of this wind sensor are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. Rika RK100-02 3 cup anemometer sensor can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas. If you are looking for a professional wind speed sensor, can consider Rika RK100-02 cup anemometer wind sensor.

RK100-02 Wind Speed ABS

SKU: MTI.AWS.RK.100-02

  • • Supply Voltage:

    1) 5V，12V-24V

    2) 5V，12V-24V

    3) 5V，12V-24V

    4) 5V，12V-24V

    • Load Capacity

    1) >1kΩ,default:high level:5V

    2) <500Ω(typ 250Ω)

    3) > 1kΩ

    • Range

     1) 0-45m / s

    2) 0-45m / s

    3) 0-45m / s

    4) 0-45m / s

    • Accuracy: ±(0.3+0.03V)m/s; (V is the current wind speed)

    • Resolution: 0.1m/s

    • Starting Threshold: <0.5m/s

    • Limit wind speed: 50m/s

    • Ingress Protection: IP65 • Operating Temperature: -40℃〜+ 50℃

    • Cable Grade: Nominal voltage:300V ,Temperature grade:80℃

    • Weight(unpacked): 170g

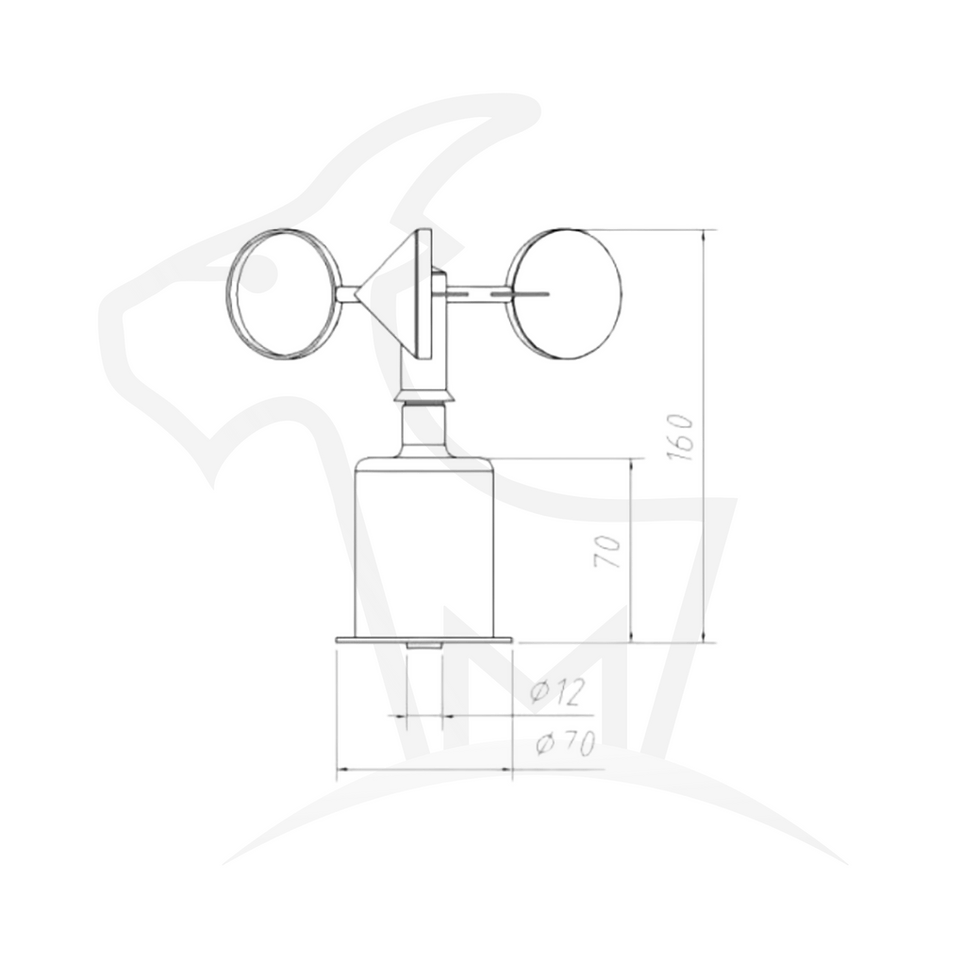

    • Dimension: Cup rotor:ø179mm,Height:160mm

    • Main material: Carbon fiber

    • Storage Condition: 10℃-50℃@20%-90%RH
