RK400-01 Rain Gauge Pulse Output - Mertani
RK400-01 Rain Gauge Pulse Output (MTI.RR.RK.400-01). The RK400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, hydrometric stations, agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.

RK400-01 Rain Gauge Pulse Output

SKU: MTI.RR.RK.400-01

  • • Rainfall collector

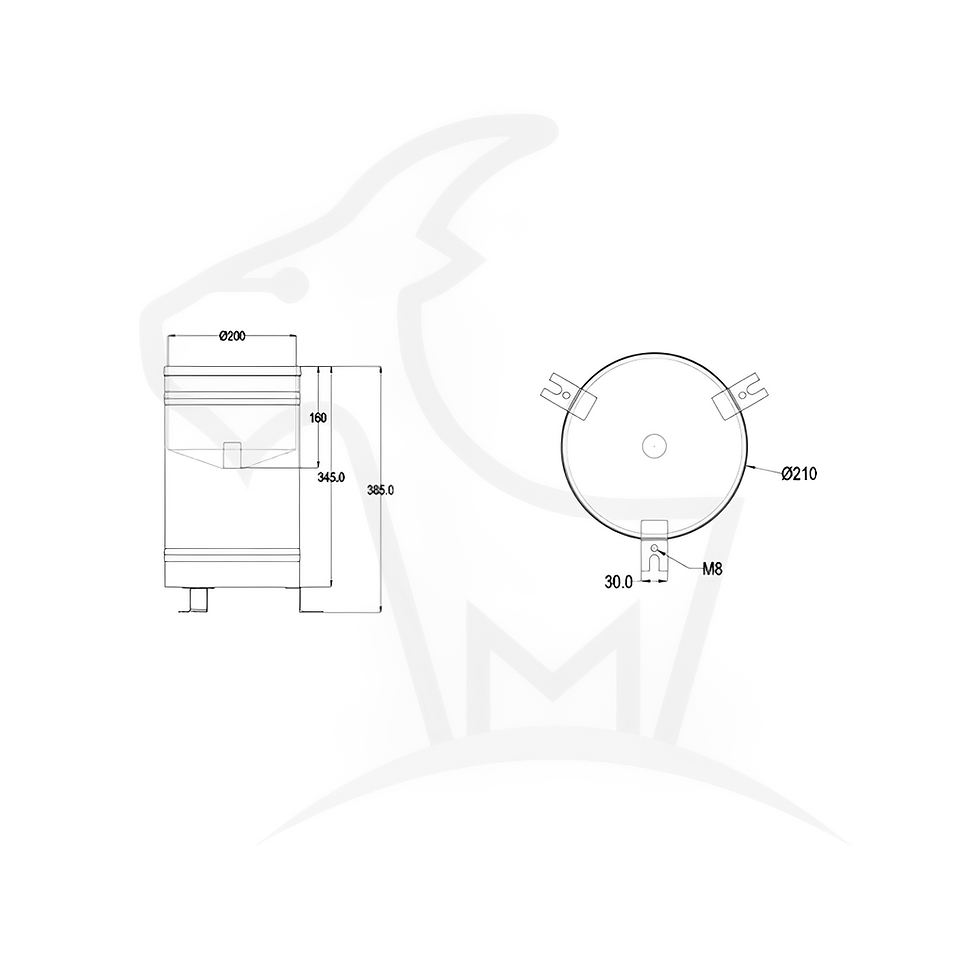

    • Diameter :φ200mm, height: 350mm

    • Measured rainfall intensity: Max: 4mm/min

    • Allow rainfall intensity: Max: 10mm/min

    • Resolution: 0.1mm, 0.2mAccuracy(2mm/min): ±4%

    • Maximum load voltage: 30VDC(pulse output)

    • Maximum load current: 20mA(pulse output)

    • Output: Reed switch pulses,RS485(12-24VDC supply)

    • Operating temperature(no freeze): -20-+80℃

    • Main material: Collector:304SS,tipping bucket:ABS

    • Tipping bucket: Single

    • Heating(optional): Heating power: approx.350W, Heating voltage:220VAC

    • Collector filter: Removable filter (prevent leaves and sundries)optional

    • Weight(unpacked): 3.5kg
