High quality, general purpose, ultrasonic anemometers

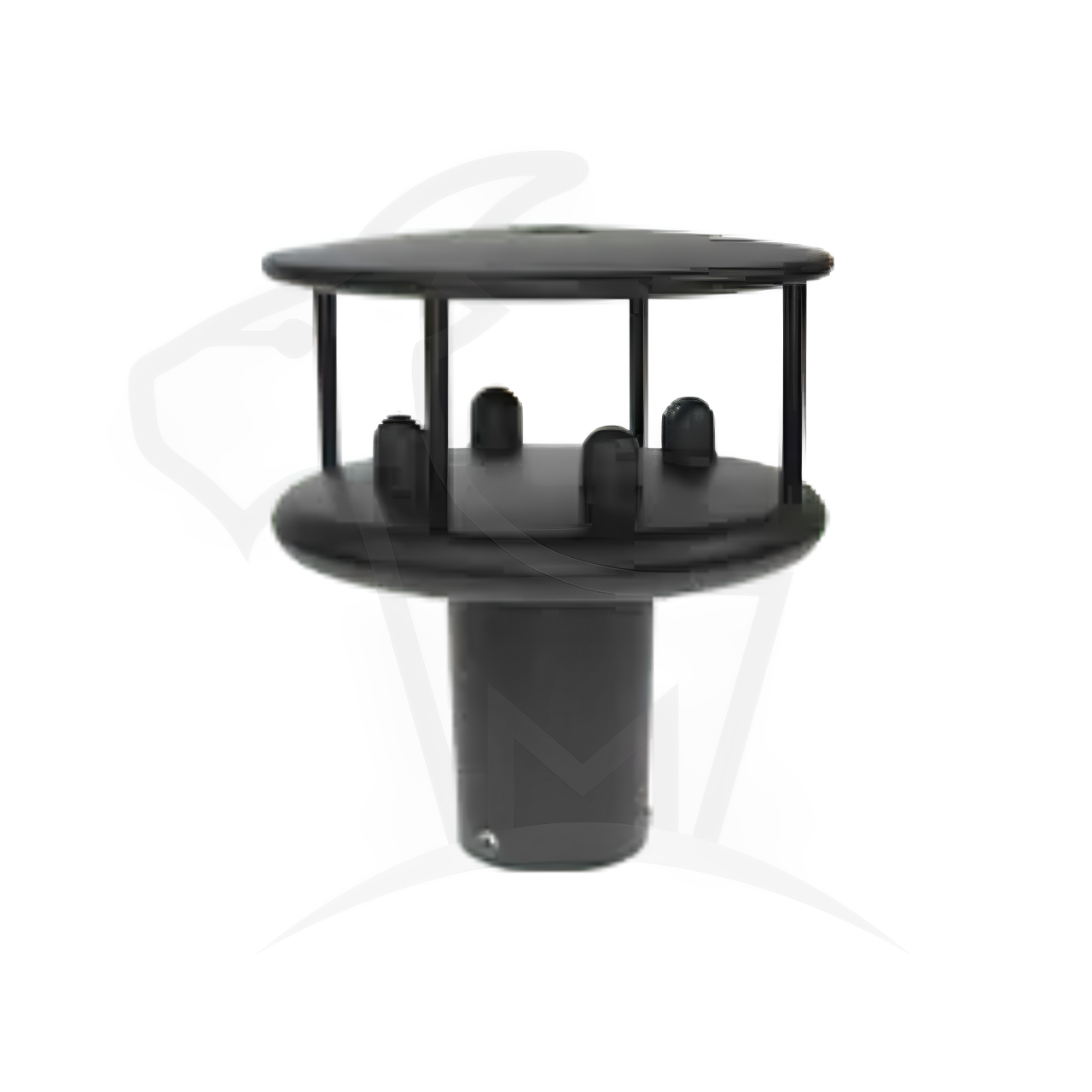

Gill WindSonic 75 (MTI.AWS.GL.WS75) is a low-cost, high speed anemometer, which utilises Gill’s proven ultrasonic technology to provide wind speed and direction data via one serial or two analogue outputs. To confirm correct operation, outputs are transmitted together with an instrument status code. WindSonic is WMO-compliant for gust measurement.
With a robust, corrosion-free polycarbonate housing, this small, lightweight wind sensor is recommended for use in harsh environmental conditions and is particularly suited to marine & offshore (ships, data buoys) and land based installations. WindSonic anemometers have no moving parts, offering maintenance-free operation in a wide range of applications
WindSonic 75
WIND SPEED
• Range: 0 - 75 m/s (146 knots)
• Accuracy: 2% RMSE @12 m/s
• Resolution: 0.01 m/s (0.02 knots)
• Response time: 0.25 seconds
• Starting threshold: 0.01 m/s
WIND DIRECTION
• Range: 0 - 360° (no dead band)
• Accuracy: 2° RMSE @12 m/s
• Resolution: 1°
• Response time: 0.25 seconds
OUTPUTS
• Option 1 interface: RS232
• Option 2 interfaces: RS232, RS422, RS485**
• Option 3 interfaces: RS232, RS422, RS485**, Analogue 0-5 V or 0-20 mA or 4-20 mA
• Option 1, 2 & 3 protocols: ASCII, NMEA 0183
• Baud rate: 2400 to 38400
POWER REQUIREMENT
• Anemometer: 12-30 VDC Options 1, 2 & 3
• Current drain: Dependent on option selected e.g, to 44 mA @ 12V (4-20 mA), Refer to manual for further advice, Start up time < 5 seconds
MECHANICAL
• External construction: LURAN S KR 2861/1C ASA/PC
• Size: 142 mm x 163 mm
• Weight: 0.5 kg
ENVIRONMENTAL
• Protection class: IP66
• Operating temperature: -35°C to +70°C
• Storage temperature: -40°C to +80°C
• Operating humidity:< 5% to 100% RH
• Precipitation: 300 mm/hr
